Triga-Bore

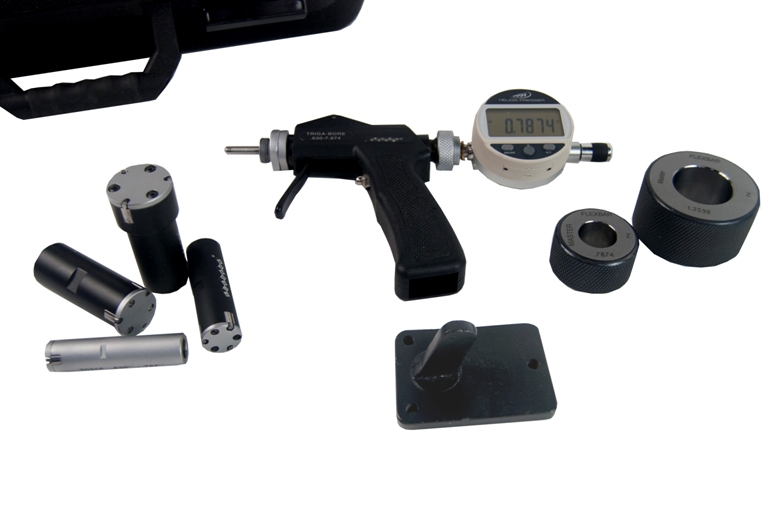

Ideal for solving internal diameter measurement problems on the shop floor and inspection areas, the system is available in a large measuring range for specific applications. Mechanical and electronic dial gages as well as linear probes can be used as specified. Ergonomic, self-centering system provides for easy and accurate measurement of internal diameters.

Main Features:

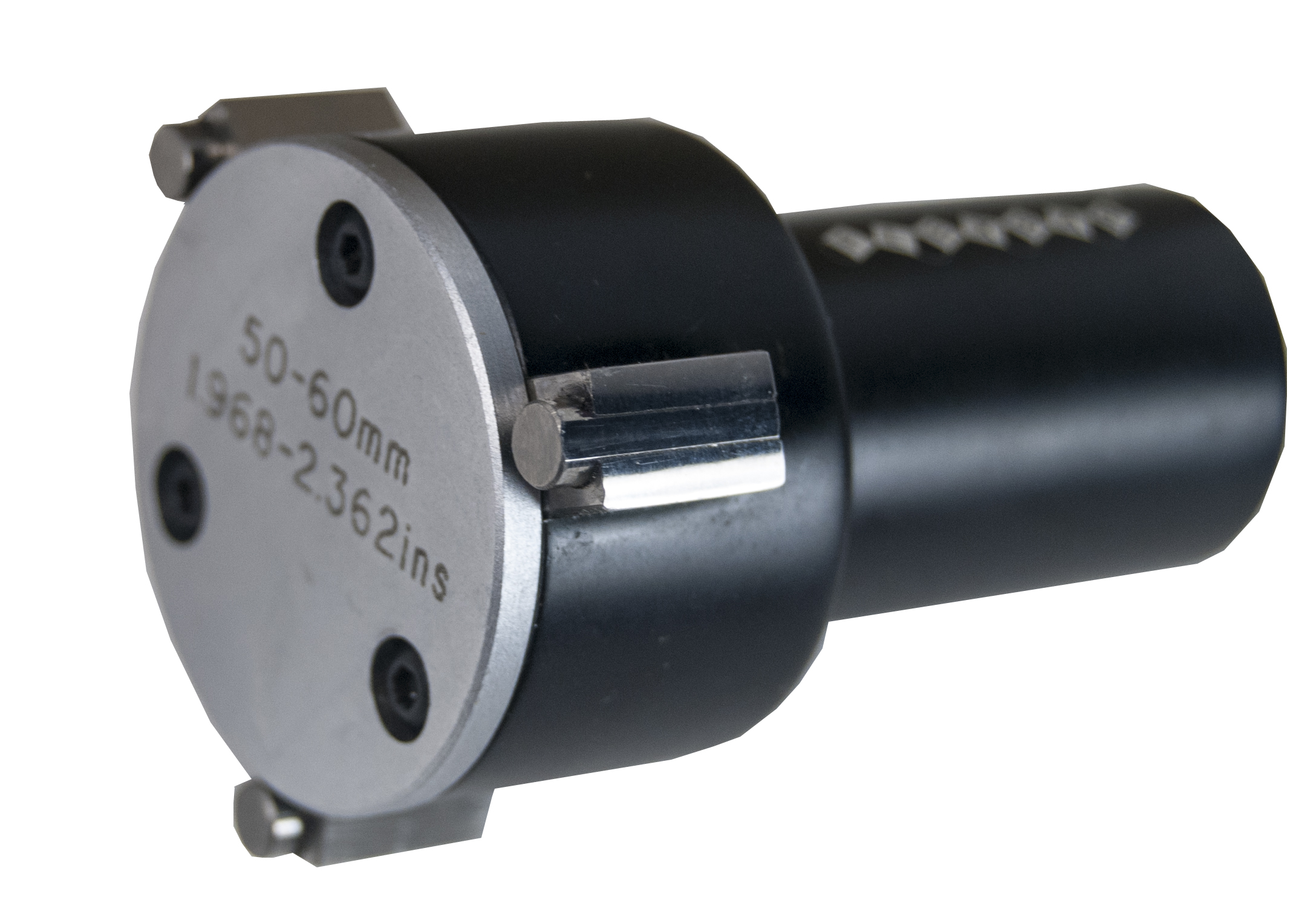

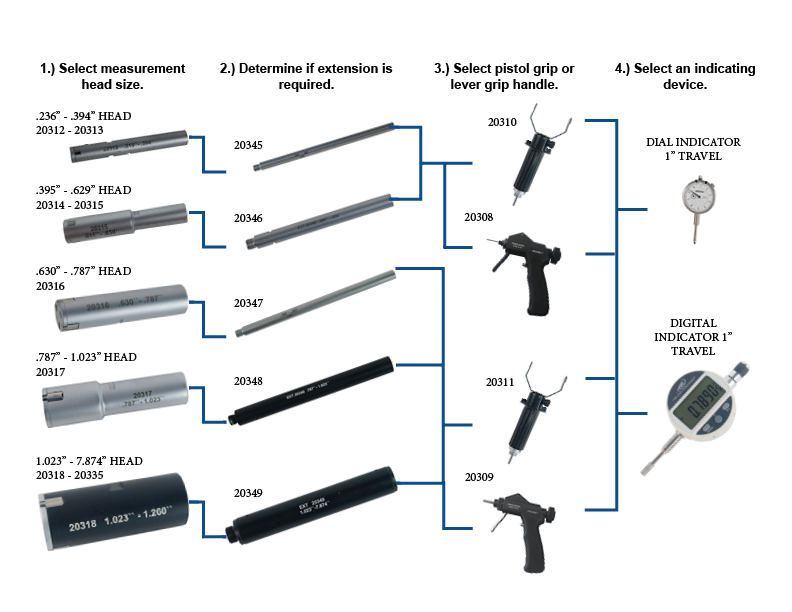

  • Triga-Bore heads have a large measuring range and are supplied with fixed anvils eliminating operator error. 24 heads cover .236" - 7.87" (6-200mm range)
  • Unique System design allows two handles to accommodate the entire range of 24 heads.
  • Extensions available for increased gaging depths
  • Repeatability: 0.0001" / 0.002mm
  • High degree of accuracy can be achieved without need for special skills
  • Customer can use digital or dial indicators, measuring probes, or choose other outputs.
  • Ideally suited to simple or integrated measurement applications
  • Can be used for special applications such as threads, 'o' ring grooves, spherical forms, etc

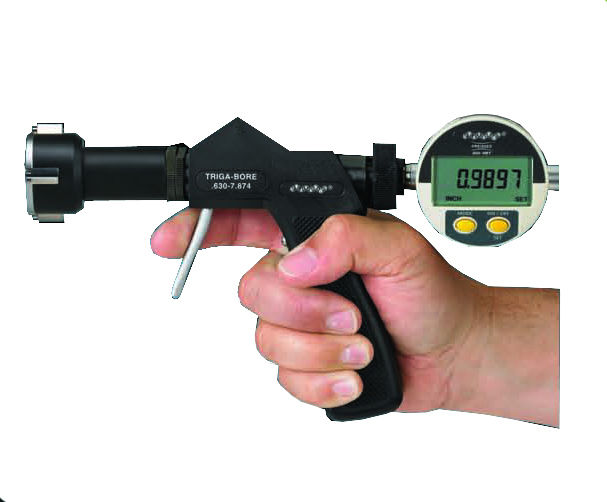

  • Ergonomically designed handle offers single handed operation
  • Accurate calibration and linearity checks can also be made using Flexbar's Calibrated Ring Gages.

Our Products

For accurate and precise measurement of internal diameters utilizing Flexbar® Triga-Bore System Gage Heads.

Custom System Sets


Triga-Bore

Triga-Bore is the result of over 30 years of design and manufacturing of 3-point bore gaging systems. Ideal for solving internal diameter measurement problems on the shop floor and inspection areas.
